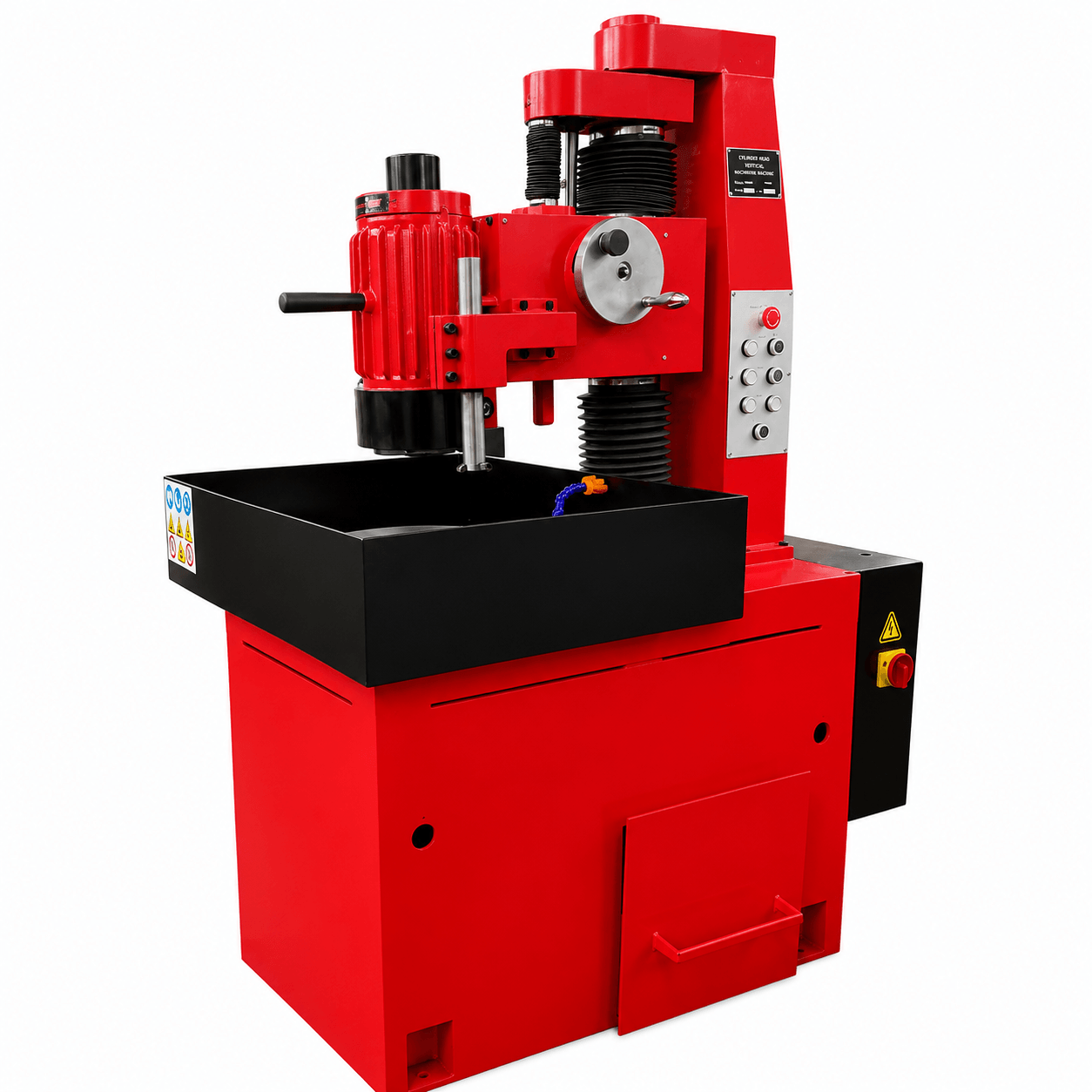

Dedicated Single-Purpose Flywheel Resurfacing Equipment
This professional grinder is specially engineered exclusively for automotive flywheel surface refurbishment in vehicle repair industries. It targets uneven, worn and warped flywheel friction surfaces to smooth out irregularities, effectively stabilizing clutch engagement and eliminating abnormal transmission vibration after engine assembly.
500mm Ultra-Wide Universal Machining Capacity
Supports flywheels with a maximum diameter up to 500mm, matched with a 450mm rotary worktable and 0–200mm adjustable grinding height. It fully covers flywheel specifications of passenger cars, light-duty trucks, agricultural tractors and industrial machinery, satisfying mixed fleet flywheel overhaul demands for multi-service repair shops.
Steady Low-Vibration Grinding System for Consistent Finish
Equipped with a powerful 3kW main grinding motor paired with dual-speed 17/34 RPM rotary table. The matched rigid vertical frame suppresses cutting vibration during material removal, delivering uniform, smooth surface finish every time, avoiding uneven grinding marks that cause premature clutch plate wear.
Simplified Robust Structure for Low-Maintenance Workshop Use
Features compact, straightforward mechanical structure with stable long-term running performance, paired with integrated coolant circulation and quick workpiece clamping fixtures. Minimal daily maintenance requirement cuts workshop operating costs, widely adopted by engine remanufacturing factories, clutch repair centers and general automotive machine shops worldwide.
Technical Specifications
| Model | FG500 |
|---|---|
| Table Diameter | 450 mm |
| Max. Diameter of Repairing Flywheel | 500 mm |
| Max. Distance from Spindle to Table | 200 mm |
| Rotational Speed of Grinding Wheel | 2800 r/min |
| Rotational Speed of Table | 17 / 34 r/min |
| Grinding Wheel Motor | 3 kW / 400V / 50Hz |
| Table Motor | 0.40 / 0.22 kW / 1400 / 700 r/min / 400V / 50Hz |
| Cooling Pump | 0.12 kW |
| Overall Dimensions (L × W × H) | 1200 × 800 × 1750 mm |
FAQ
1. What types of flywheels can the FG500 resurface?
The FG500 is designed to resurface flywheels used in gasoline and diesel engines, including passenger cars, light commercial vehicles, heavy-duty trucks, agricultural machinery, and industrial equipment. It is suitable for restoring clutch contact surfaces during engine rebuilding and clutch replacement, helping workshops handle a wide range of flywheel applications.
2. Why should a flywheel be resurfaced instead of replaced?
In many cases, a worn flywheel with glazing, scoring, or minor heat spots can be resurfaced to restore a smooth and flat clutch contact surface, provided it remains within the manufacturer’s service specifications. Resurfacing can reduce repair costs, improve clutch engagement, and extend the service life of both the flywheel and the new clutch assembly. The flywheel should always be inspected for cracks, excessive wear, and minimum thickness before machining.
3. How does flywheel grinding improve clutch performance?
Precision flywheel grinding restores the correct surface finish and flatness, allowing the clutch disc to make uniform contact with the flywheel. This helps reduce clutch chatter, vibration, slipping, and uneven wear while improving engagement and transmission efficiency after clutch replacement. Consistent surface quality is one of the primary objectives of professional flywheel resurfacing.
4. Is the FG500 suitable for professional clutch and engine rebuilding workshops?
Yes. The FG500 is widely used in automotive machine shops, clutch rebuilding centers, engine remanufacturing facilities, commercial vehicle repair shops, and fleet maintenance workshops. It is designed for continuous operation, providing consistent resurfacing quality and improving workshop productivity.
5. Why invest in an in-house flywheel grinding machine?
Bringing flywheel resurfacing in-house eliminates outsourcing delays, shortens clutch repair turnaround times, and gives workshops greater control over machining quality. It also enables businesses to provide complete clutch and engine rebuilding services, creating additional revenue while improving customer satisfaction. Industry guidance consistently identifies faster turnaround and higher profitability as key benefits of owning a flywheel grinder.
6. If the machine breaks down, how do you provide after-sales support? Do you provide operation videos?
Yes. We provide comprehensive after-sales support, including remote technical assistance, online troubleshooting, operation manuals, demonstration videos, maintenance tutorials, and live video guidance. If replacement parts are required, genuine spare parts can be supplied quickly to minimize downtime and keep your machine running efficiently.
7. Can you issue Certificates of Origin (CO), Form A, Form E, or other export documents?
Yes. We can provide the necessary export documents—including Certificates of Origin (CO) and other preferential certificates such as Form E—in accordance with the trade agreements and customs requirements of the destination country. We can also assist you in preparing commercial invoices, packing lists, bills of lading, and other export documentation.
8. What is your minimum order quantity (MOQ)? Do you support OEM & ODM customization?
Our standard MOQ is 1 machine for most models. We also provide OEM and ODM services for distributors and equipment brands, including custom logos, machine colors, nameplates, voltage, packaging, and other specifications to meet your market requirements.
9. Which shipping ports do you use? Can you deliver to my designated warehouse?
We typically ship from major Chinese ports, including Shenzhen, Guangzhou, Ningbo, and Shanghai. We can also arrange delivery to your designated warehouse, freight forwarder, or project site through flexible international shipping solutions.
10. How long does delivery take to my country?
Production typically takes 7–35 days, depending on the machine model and order quantity. Shipping time varies by destination and transportation method. Once your order is confirmed, we will provide a detailed production schedule and estimated delivery time.
