All-In-One Alloy Wheel Repair & Rim Restoration
This single wheel straightening machine covers full aluminium alloy wheel repair workflows: deformation straightening, rim reshaping, and surface cutting. It eliminates the need to purchase separate dedicated machines for different repair procedures, greatly cutting equipment investment costs for wheel refurbishment businesses and auto repair shops.
Four Workstations & Universal Rim Positioning
Equipped with four dedicated tool stations and multi-hole flange plates to lock various passenger car alloy rims firmly from 10″ to 26″ diameter. Dual support cylinders and a heavy-duty frame structure deliver stable clamping force during hydraulic pressing, preventing rim displacement during heavy-duty straightening operations.
Powerful Electro-Hydraulic Driving System
15-ton hydraulic working pressure paired with a high-torque 1.5 kW variable-frequency motor ensures strong correction force for severely bent wheels. Stable 1,400 rpm motor rotation and a 63 mm thick piston deliver consistent output while keeping operation noise as low as 35 dB for a quieter workshop environment.
Space-Saving & User-Friendly Layout
Compact integrated design occupies minimal shop floor space with standardized packed dimensions. All operating controls and tool stations are laid out intuitively for fast operator learning. Simple operation flow shortens single-wheel repair time and boosts daily refurbishment output for tire service stores and wheel repair centers.
Technical Specifications
| Model | ESW-95LM |
| Working pressure | 15 Tons |
| Wheel diameter capacity | 10″ – 26″ (254–660 mm) |
| Tool stations | 4 |
| Motor power | 1.5 kW / 0.75 kW (220 V / 380 V) |
| Motor speed | 1,400 rpm |
| Piston diameter | 63 mm |
| Operating noise | 35 dB |
| Packed size | 1000 × 700 × 1900 mm / 1320 × 780 × 1420 mm |
| Net weight | 325 kg |
| Gross weight | 365 kg |
FAQ
1 What types of wheel rim damage can the ESW-95LM repair?
The ESW-95LM is designed to repair cosmetic and structural damage on aluminum alloy wheel rims, including curb rash, scratches, gouges, corrosion, and minor surface imperfections. Its integrated CNC-controlled cutting system precisely removes damaged material and restores a smooth, uniform surface finish ready for repainting or clear coating.
2 How does CNC wheel rim repair work on the ESW-95LM?
The ESW-95LM uses a computer-controlled cutting path that follows the wheel’s original contour with high precision. The CNC system guides the cutting tool along the rim’s profile, removing a consistent, minimal layer of material to eliminate surface damage while preserving the wheel’s structural integrity and original design geometry.
3 Why use a professional rim repair machine instead of manual polishing?
Manual polishing is labor-intensive, inconsistent, and can create uneven surfaces or flat spots. The ESW-95LM’s CNC-controlled process delivers uniform, repeatable results across the entire rim surface. It is faster, more precise, and produces a professional-grade finish that manual methods cannot consistently match, allowing shops to offer premium wheel refurbishment services.
4 How can the ESW-95LM add revenue to my workshop?
Alloy wheel repair is a high-demand, high-margin service. Adding the ESW-95LM to your workshop enables you to offer professional rim refurbishment, capturing revenue that would otherwise go to specialized wheel repair shops. It also complements existing tire and brake services, creating cross-selling opportunities and increasing overall customer spend per visit.

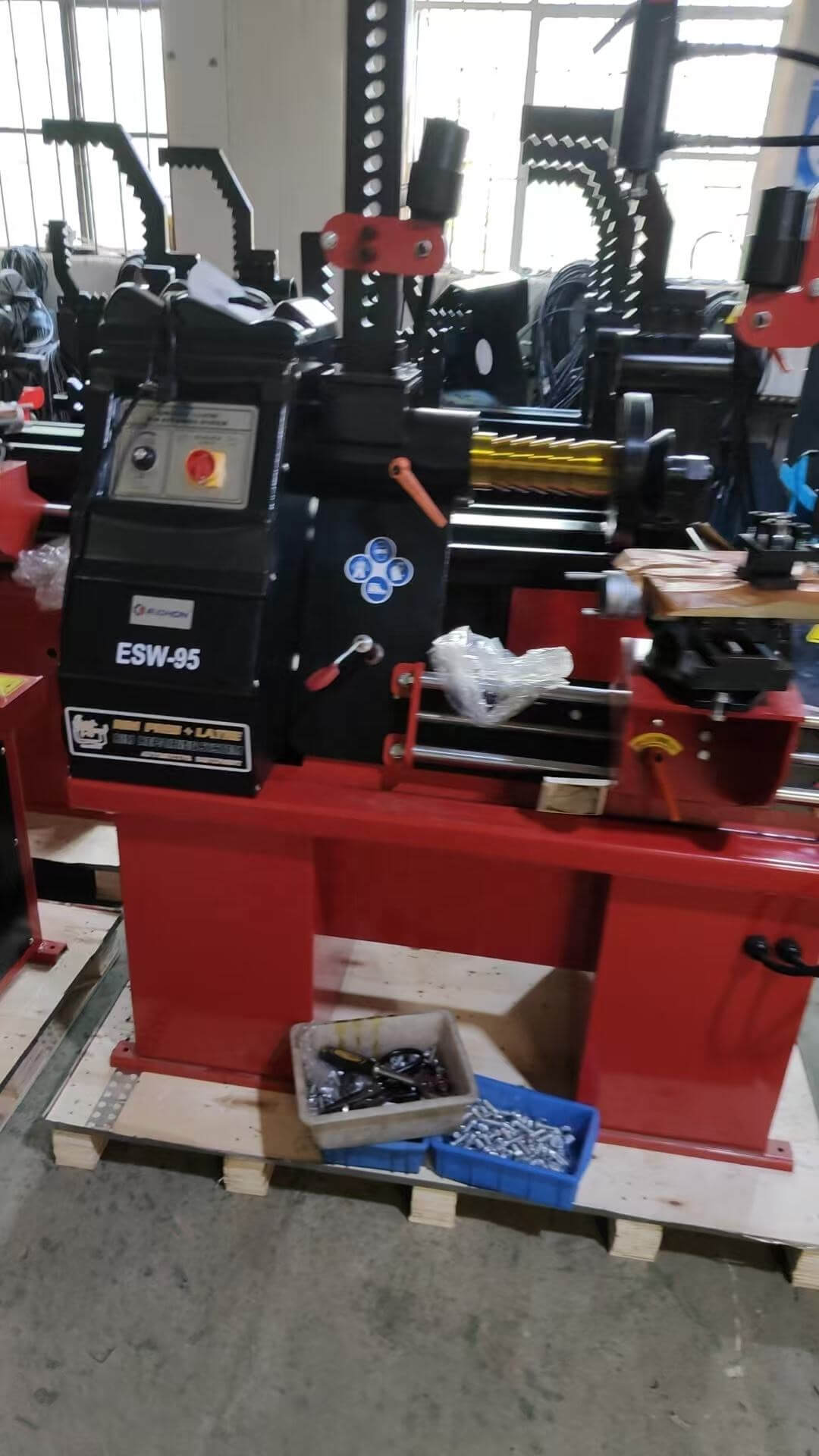

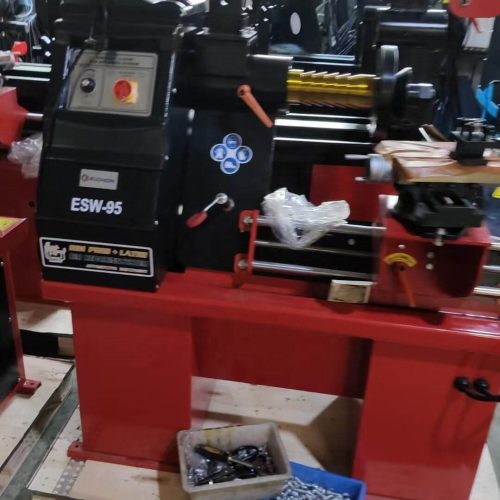

5 What is the difference between the ESW-95LM and the ESW-95 straightening machine?
The ESW-95LM is a CNC rim cutting and refinishing machine designed for surface restoration and cosmetic repair. The ESW-95 is a hydraulic wheel straightening machine designed for structural repair of bent, warped, or deformed rims. They complement each other: the ESW-95 corrects structural deformation, while the ESW-95LM restores the surface finish, together providing a complete alloy wheel refurbishment solution.
6 If the machine breaks down, how do you provide after-sales support? Do you provide operation videos?
Yes. We provide comprehensive after-sales support, including remote technical assistance, online troubleshooting, operation manuals, demonstration videos, maintenance tutorials, and live video guidance. If replacement parts are required, genuine spare parts can be supplied quickly to minimize downtime and keep your machine running efficiently.
7 Can you issue Certificates of Origin (CO), Form A, Form E, or other export documents?
Yes. We can provide the necessary export documents — including Certificates of Origin (CO) and other preferential certificates such as Form E — in accordance with the trade agreements and customs requirements of the destination country. We can also assist you in preparing commercial invoices, packing lists, bills of lading, and other export documentation.
8 What is your minimum order quantity (MOQ)? Do you support OEM & ODM customization?
Our standard MOQ is 1 machine for most models. We also provide OEM and ODM services for distributors and equipment brands, including custom logos, machine colors, nameplates, voltage, packaging, and other specifications to meet your market requirements.
9 Which shipping ports do you use? Can you deliver to my designated warehouse?
We typically ship from major Chinese ports, including Shenzhen, Guangzhou, Ningbo, and Shanghai. We can also arrange delivery to your designated warehouse, freight forwarder, or project site through flexible international shipping solutions.
10 How long does delivery take to my country?
Production typically takes 7-35 days, depending on the machine model and order quantity. Shipping time varies by destination and transportation method. Once your order is confirmed, we will provide a detailed production schedule and estimated delivery time.
