Why choose C9350C?
Expand Your Brake Repair Capability

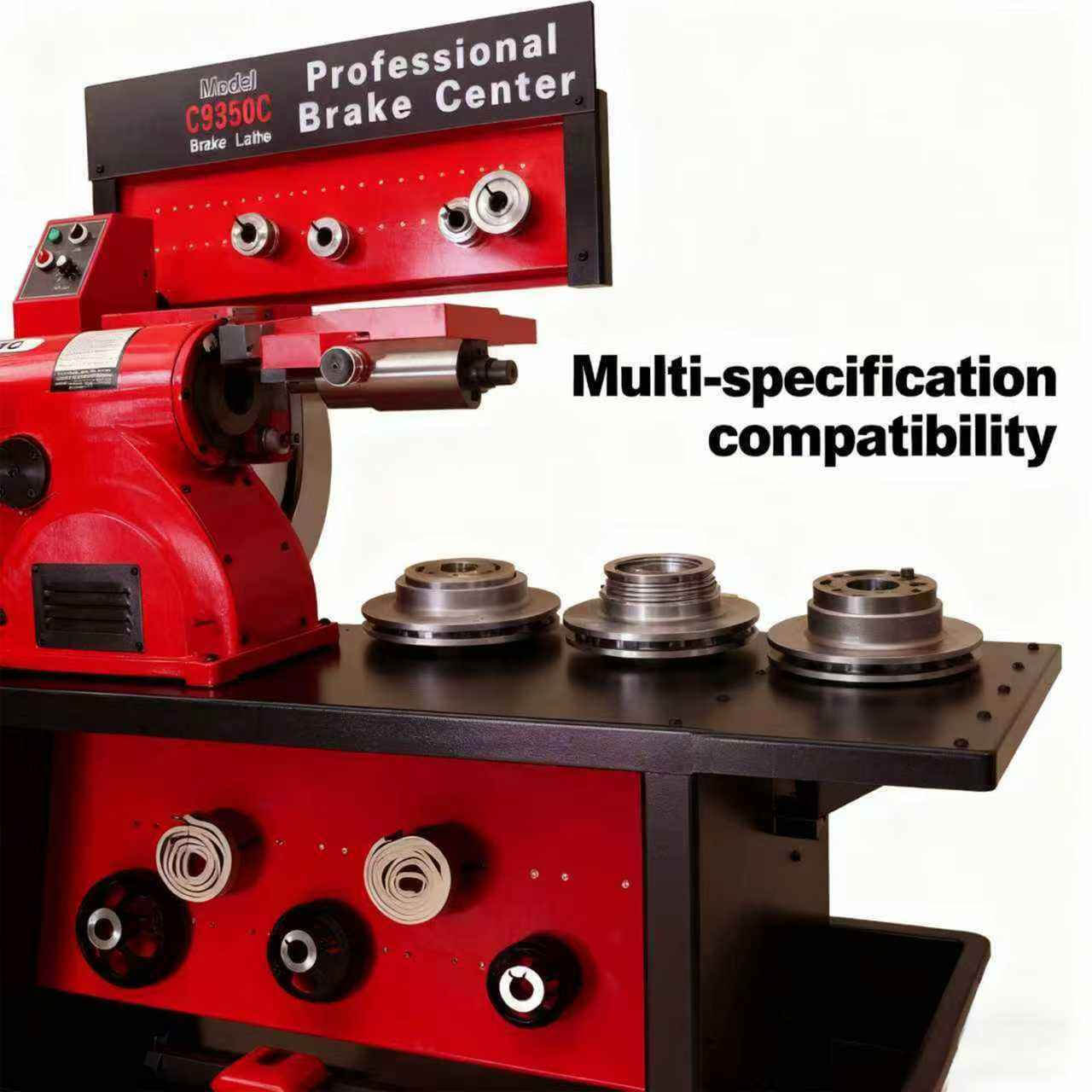

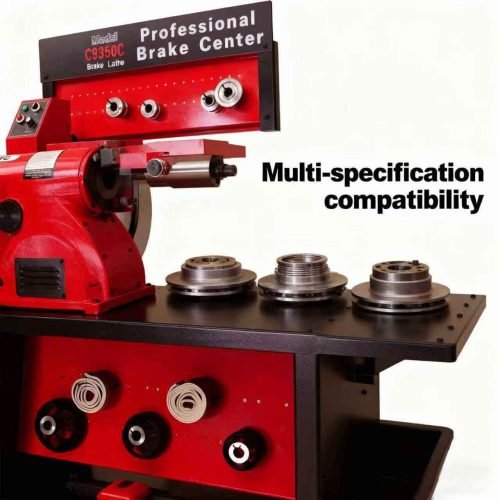

One Machine, Multiple Brake Applications
The C9350C supports machining of brake discs, brake drums and flywheels, allowing workshops to handle different brake resurfacing requirements with one machine.
Independent motors drive transverse and longitudinal feed movements, providing flexible control during machining operations.
The infinitely variable feed speed adjustment allows operators to select suitable machining speeds for different brake components.
Twin cutter design enables quick switching between brake disc and drum machining operations, improving workshop efficiency.
Key Features
Brake Disc, Drum & Flywheel Resurfacing
Machine brake discs, brake drums and flywheels with one versatile brake lathe solution.
Independent Motor-Driven Feed
Seperate motors control transverse and longitudinal feed movements provides flexible operation and adjustable machining control.
Infinitely Variable Speed Control
Adjust feed speed smoothly according to different machining requirements. Helps operators achieve efficient and stable machining performance.
Quick Disc & Drum Changeover
Twin cutter design allows fast switching between disc and drum machining operations. Improves workshop productivity for different repair jobs.
Technical Specifications
| Model | C9350 / C9350C |
| Spindle travel | 6.875″ (175 mm) |
| Drum depth | 6.875″ (175 mm) |
| Spindle feed speed | 0.002″ – 0.02″ / rev (0.05 – 0.5 mm/rev) |
| Cross feed speed | 0.002″ – 0.02″ / rev (0.05 – 0.5 mm/rev) |
| Handwheel graduation | 0.002″ (0.05 mm) |
| Spindle speed (3 options) | 70 / 88 / 118 RPM |
| Fast & slow feed setting | Yes |
| Auto-stop after cutting | Yes — prevents over-cutting |
| Rotor diameter capacity | 7″ – 15″ (180 – 381 mm) |
| Drum diameter capacity | 6″ – 17.7″ (152 – 450 mm) |
| Max. rotor thickness | 1.875″ (48 mm) |
| Motor voltage | 110 V / 220 V / 380 V, 50/60 Hz |
| Motor power | Industrial AC motor (per local spec) |
| Quick rotor-to-drum changeover | Yes — tool-free switch |
| Gross weight | 290 kg (639 lbs) |
| Dimensions (L × W × H) | 1010 × 950 × 1150 mm (39.8 × 37.4 × 45.3″) |
| Application | Passenger-vehicle brake rotors & drums |

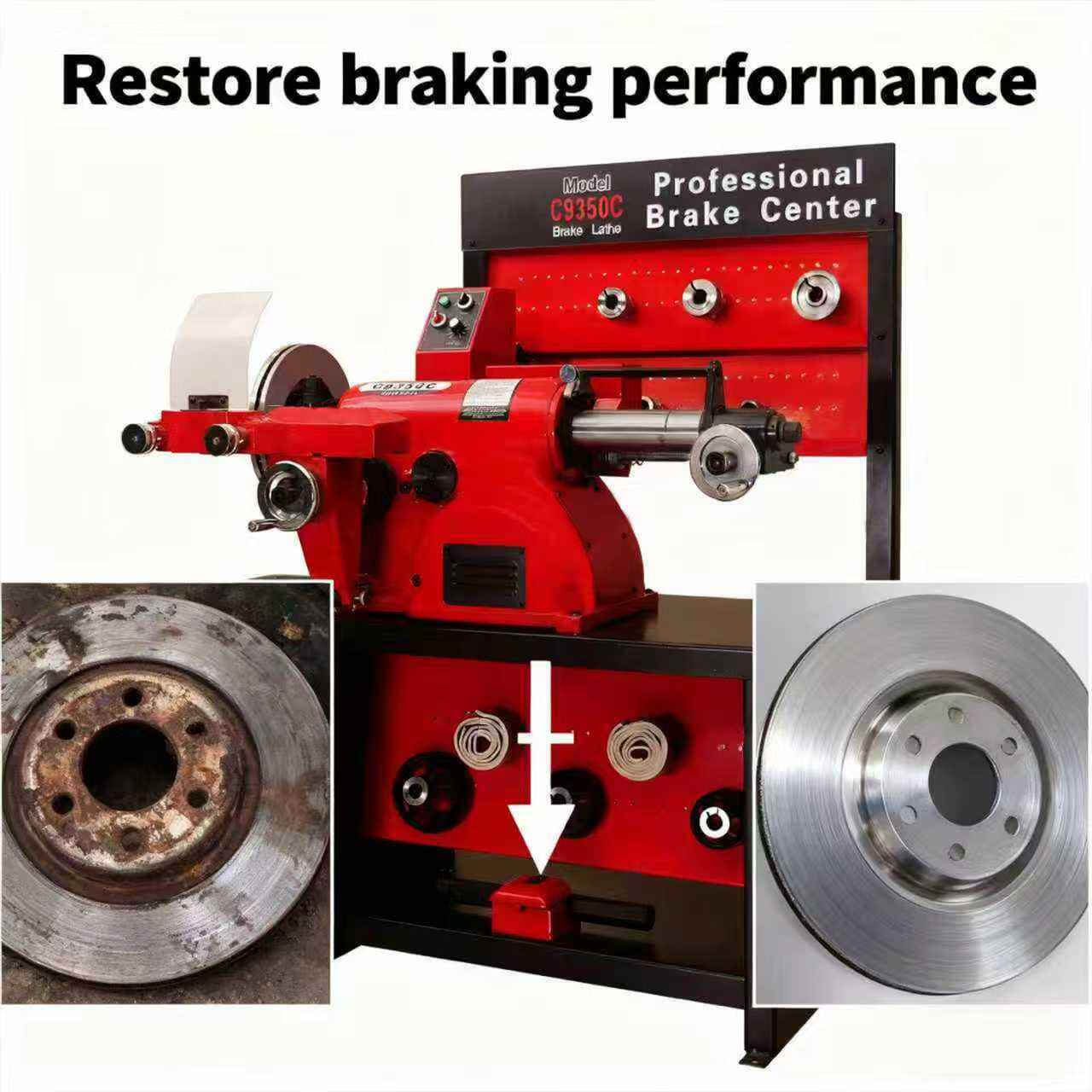

Brake Disc Resurfacing Result
Before:
uneven/worn brake surface
After:
resurfaced brake surface
Applications
Designed for Brake Repair Professionals
Real Customer Feedback
Product Video
FAQ
1 What brake components can the C9350C machine?
The C9350C can resurface brake discs, brake drums and flywheels, providing multiple machining functions with one machine.
2 What vehicles is the C9350C suitable for?
The C9350C is commonly used for passenger cars and SUVs. For larger brake systems such as light trucks or special applications, a larger model may be required.
3 What is the machining range of the C9350C?
The C9350C can process brake discs from 180–381 mm and brake drums from 152–450 mm.
4 How does the C9350C control machining feed?
The machine uses independent motors for transverse and longitudinal feed movements, with infinitely variable feed speed adjustment.
5 When should I choose a larger brake lathe model?
The C9350C is suitable for cars and SUVs. Larger models such as C9370/C9370C are recommended for larger brake systems.
