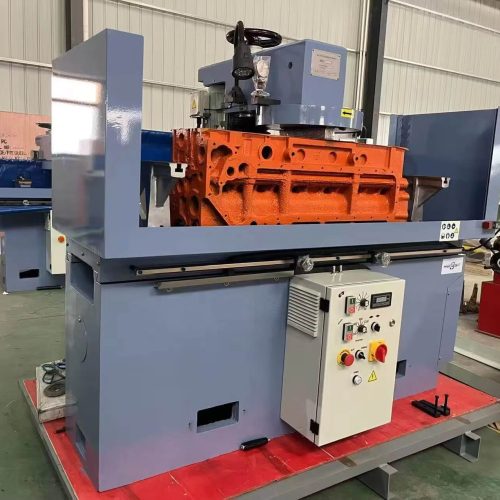

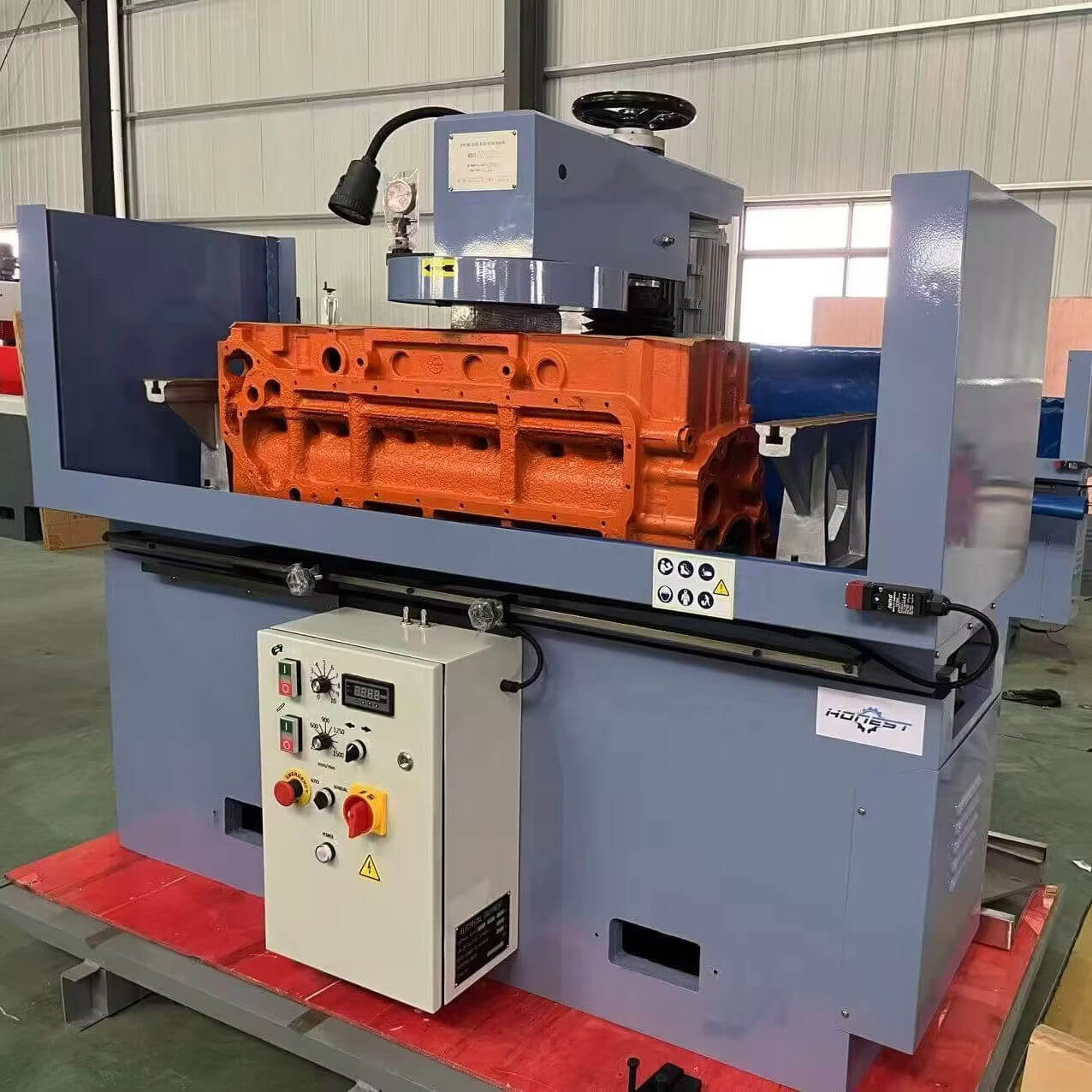

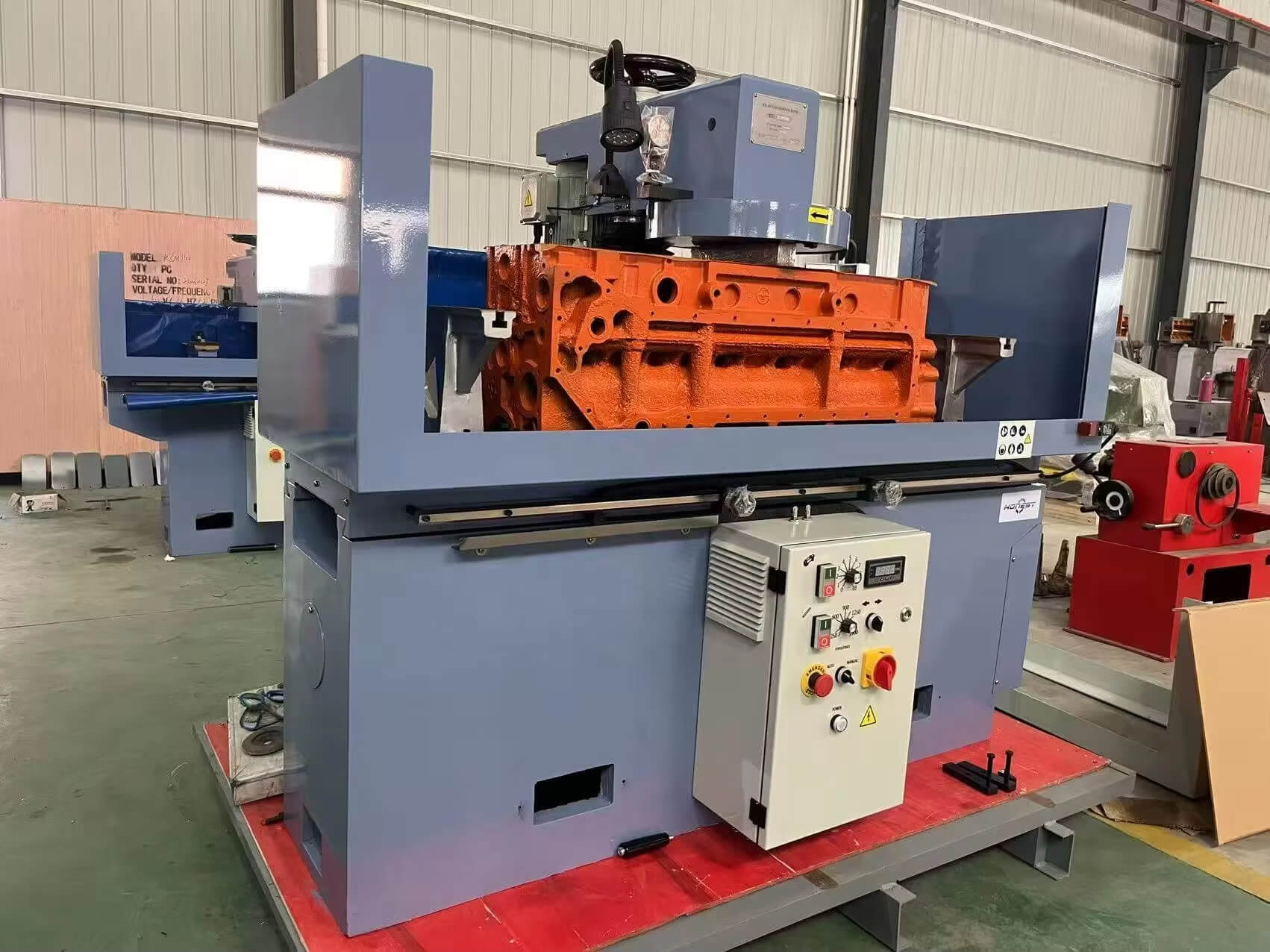

Large-Scale Engine Block & Cylinder Head Resurfacing
Engineered for high-precision machining of heavy-duty engine blocks and cylinder heads, the KSM 1100 surface grinder effectively repairs deformed, worn, and damaged sealing surfaces caused by long-term operation. It accurately corrects flatness errors with a precise ball-screw drive table feed, providing reliable surface restoration for standardized engine rebuilding procedures on cars, trucks, and commercial vehicles.
Heavy-Duty Cast Iron Frame for Maximum Rigidity
Boasting a high-quality cast iron frame with superior rigidity and sturdiness, the KSM 1100 adapts to various heavy-duty engine types — including diesel engines, truck powertrain engines, construction machinery engines, and industrial power units. It enables workshops to stably and accurately process oversized engine components up to 1,100 mm in length and 520 mm in height that ordinary machining equipment cannot handle.
Variable-Speed Precision Drive & CE-Certified Safety
Powered by a 2.2 kW head motor and a 1.5 kW table motor, the KSM 1100 features Taiwan-brand inverters controlling both table travel and head rotation. Variable head speed from 300–1,200 rpm and variable table travel speed from 0–600 mm/min allow precise control for both rough stock removal and ultra-fine finishing. A CE-standard control panel and polycarbonate safety guard ensure safe, compliant operation in professional workshops.
Ready-to-Work with Premium Standard Accessories
Delivered with a complete standard accessory kit, including parallel supports with 6 clamps, 1/2″ CBN/PCD inserts, and matching tool holders. Manual and continuous working cycle programs provide flexible operation modes for batch processing or single-piece repair. It is ideal for engine rebuilding plants, diesel maintenance centers, marine engine repair workshops, and heavy equipment service institutions worldwide.

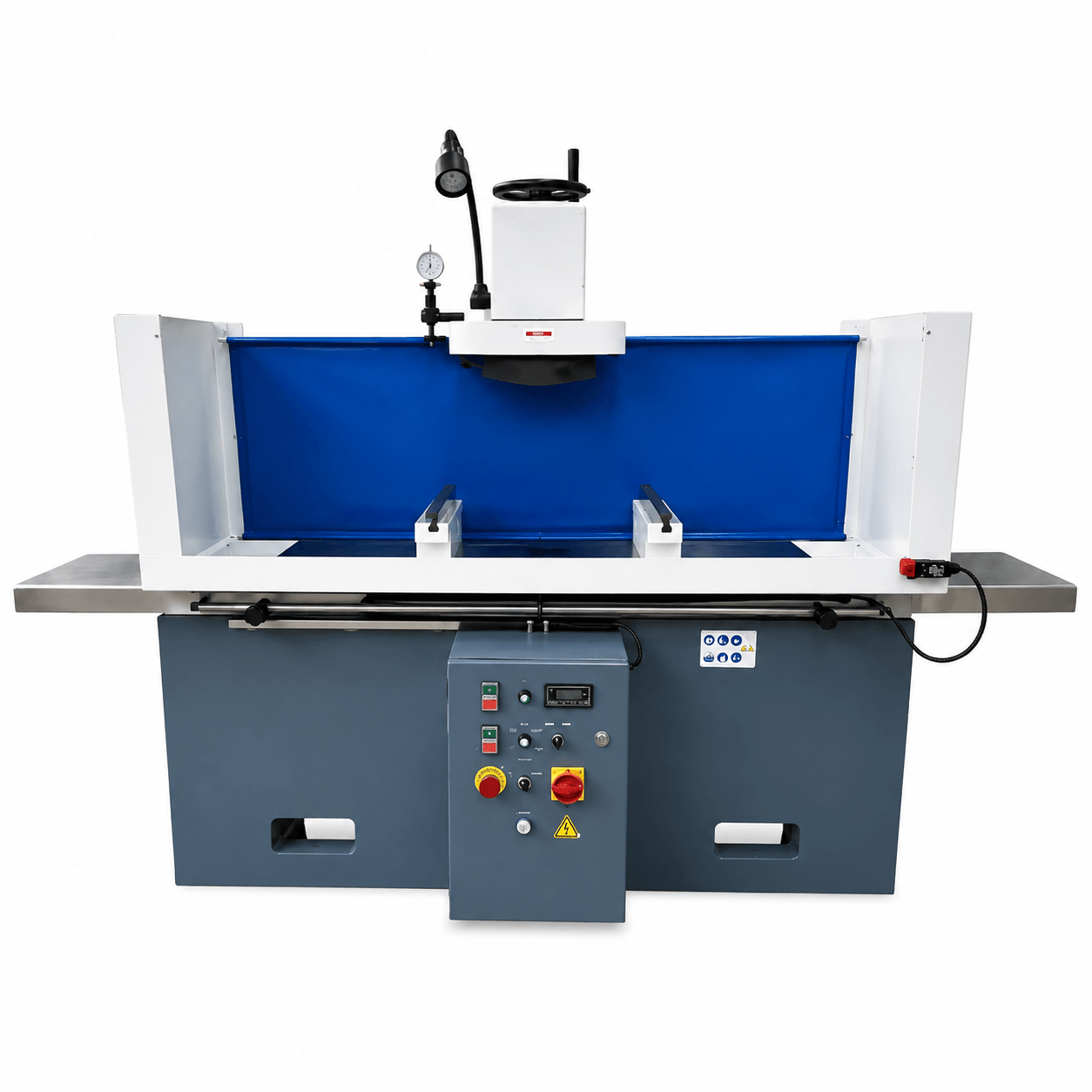

KSM 1100 Technical Specifications
| Model | KSM 1100 |
| Table travel | 1,365 mm (53.7″) |
| Max. workpiece length | 1,100 mm (43.3″) |
| Max. workpiece width | 400 mm (15.7″) |
| Min. – max. workpiece height | 260 – 520 mm (10.2 – 20.5″) |
| Milling wheel diameter | 400 mm (15.7″) |
| Variable head rotate speed | 300 – 1,200 rpm |
| Variable table travel speed | 0 – 600 mm/min |
| Head motor power | 2.2 kW |
| Table motor power | 1.5 kW |
| Table feed drive | Ball screw — extremely precise |
| Inverter control | Taiwan brand — table travel & head rotate |
| Working cycle programs | Manual / Continuous |
| Safety standard | CE standard control panel |
| Safety guard | Polycarbonate shield |
| Standard accessories | Parallel supports with 6 clamps, 1/2″ CBN/PCD inserts & tool holders |
| Dimensions (L × W × H) | 1,900 × 1,250 × 1,680 mm (74.8 × 49.2 × 66.1″) |
| Net weight | 1,500 kg (3,307 lbs) |
| Gross weight | 1,760 kg (3,880 lbs) |
| Application | Car & truck cylinder heads & engine blocks |
Product Video
FAQ
1. What types of cylinder heads and engine blocks can the KSM1100 machine resurface?
The KSM1100 is designed for precision milling of both cylinder heads and engine blocks made from cast iron and aluminum. It is suitable for gasoline and diesel engines used in passenger cars, commercial vehicles, heavy-duty trucks, agricultural machinery, marine engines, and industrial power equipment. Its generous working capacity makes it ideal for professional engine rebuilding workshops.
2. Can the KSM1100 achieve the surface finish required for modern engine rebuilding?
Yes. The KSM1100 delivers high-precision milling with excellent flatness and surface quality, making it suitable for modern engine rebuilding applications, including engines equipped with MLS (Multi-Layer Steel) head gaskets. Accurate resurfacing helps improve sealing performance and reduce the risk of coolant leaks, oil leaks, and compression loss after engine assembly.
3. Why choose the KSM1100 for professional engine rebuilding?
The KSM1100 features a rigid machine structure, precision spindle, and stable table movement, allowing operators to machine cylinder heads and engine blocks with consistent accuracy. Its efficient milling performance helps reduce machining time, improve productivity, and lower operating costs, making it an excellent investment for engine repair businesses.
4. Is the KSM1100 suitable for continuous workshop operation?
Absolutely. The machine is designed for daily use in automotive machine shops, engine remanufacturing factories, diesel engine repair centers, and vocational training facilities. Its durable construction ensures reliable performance, repeatable accuracy, and long service life under demanding workloads.
5. What after-sales support is available for the KSM1100?
We provide comprehensive after-sales support, including installation guidance, operation manuals, maintenance instructions, spare parts supply, remote technical assistance, and online training. Our experienced technical team helps customers maximize machine performance while minimizing downtime.
6. If the machine breaks down, how do you provide after-sales support? Do you provide operation videos?
Yes. We provide comprehensive after-sales support, including remote technical assistance, online troubleshooting, operation manuals, demonstration videos, maintenance tutorials, and live video guidance. If replacement parts are required, genuine spare parts can be supplied quickly to minimize downtime and keep your machine running efficiently.
7. Can you issue Certificates of Origin (CO), Form A, Form E, or other export documents?
Yes. We can provide the necessary export documents—including Certificates of Origin (CO) and other preferential certificates such as Form E—in accordance with the trade agreements and customs requirements of the destination country. We can also assist you in preparing commercial invoices, packing lists, bills of lading, and other export documentation.
8. What is your minimum order quantity (MOQ)? Do you support OEM & ODM customization?
Our standard MOQ is 1 machine for most models. We also provide OEM and ODM services for distributors and equipment brands, including custom logos, machine colors, nameplates, voltage, packaging, and other specifications to meet your market requirements.
9. Which shipping ports do you use? Can you deliver to my designated warehouse?
We typically ship from major Chinese ports, including Shenzhen, Guangzhou, Ningbo, and Shanghai. We can also arrange delivery to your designated warehouse, freight forwarder, or project site through flexible international shipping solutions.
10. How long does delivery take to my country?
Production typically takes 7–35 days, depending on the machine model and order quantity. Shipping time varies by destination and transportation method. Once your order is confirmed, we will provide a detailed production schedule and estimated delivery time.
