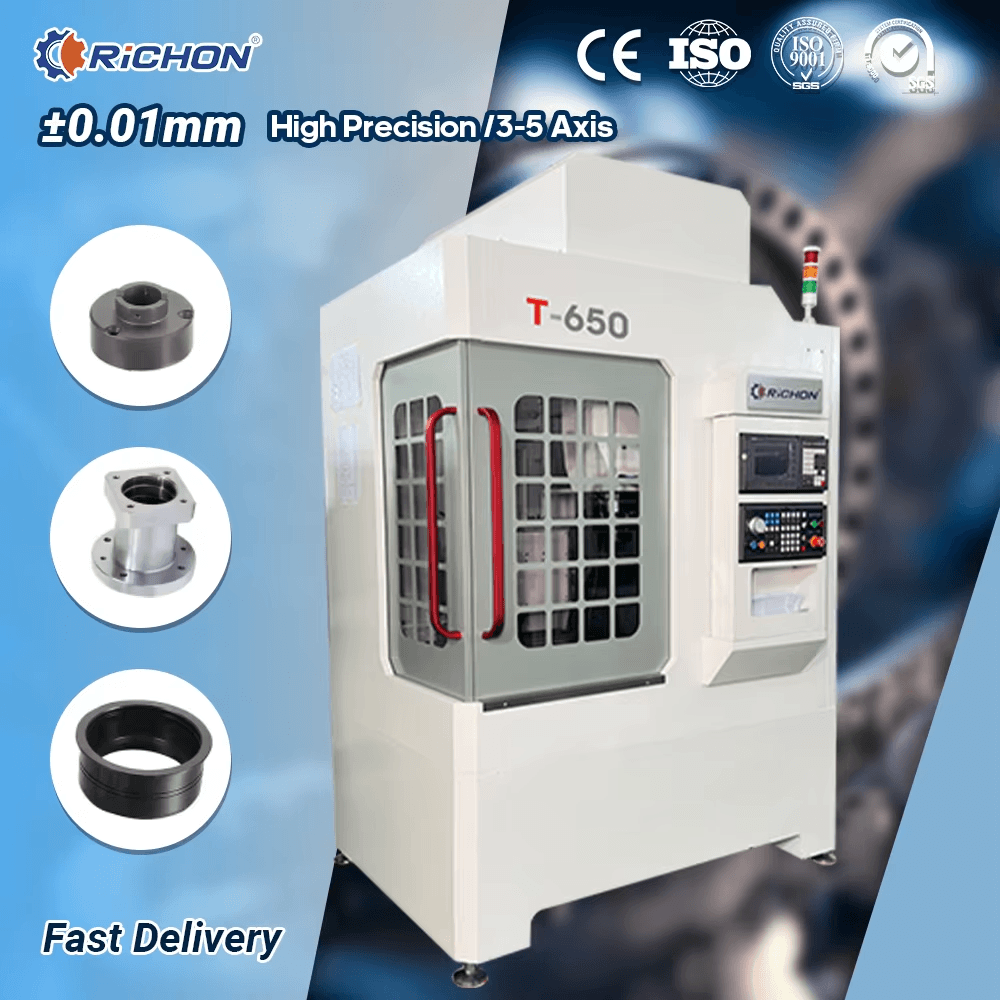

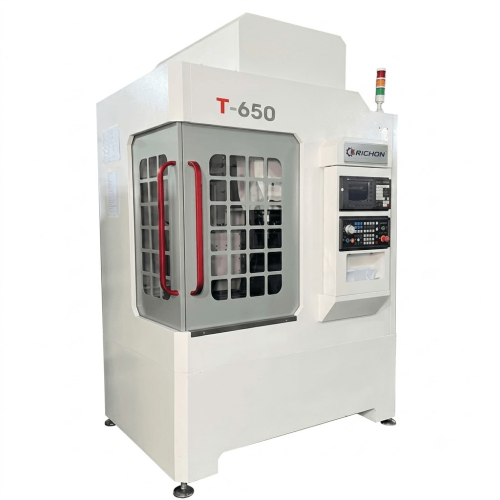

Multi-Process Integrated Machining Boosts Batch Production Efficiency
This CNC machine features high speed, outstanding precision, stable operation and full safety protection, specially developed for mass production of small precision hardware parts. It can finish cutting, drilling and tapping processes within one workpiece clamping procedure, eliminating repeated positioning errors, shortening overall processing cycles and greatly lifting daily workshop output for aluminum alloy parts, electronic accessories and miniature molds.

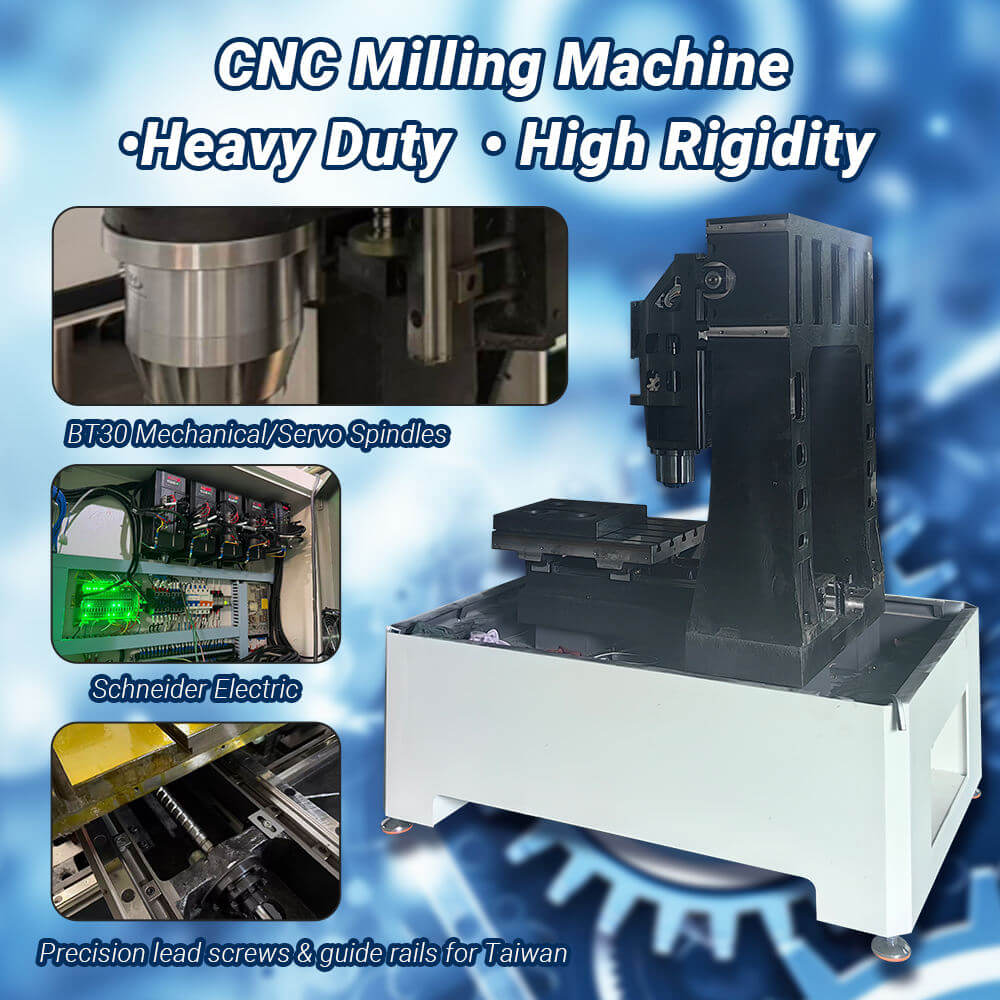

Patented Anti-Deformation Base Reduces Vibration & Elevates Machining Finish
Adopting exclusive patented anti-deformation machine bed structure, the equipment effectively counteracts vibration generated during high-speed cutting. It avoids long-term frame deformation under continuous heavy load, consistently improves dimensional tolerance accuracy and workpiece surface smoothness, retaining stable machining precision even after years of uninterrupted batch manufacturing work.
Two Spindle Versions Available to Match Different Cutting Demands
Two configurations are optional to suit varied processing scenarios:
- Standard T-650: 6000rpm mechanical spindle, standard 5.5KW motor (7.5KW optional), ideal for conventional steel, cast iron rough and semi-finishing;
- Upgraded T-650B: 8000rpm direct-drive mechanical spindle, faster rotating speed for delicate finishing and aluminum high-speed cutting.
Both power options bring powerful torque and smooth cutting performance.
Flexible CNC System & Complete Auxiliary Configuration for Easy Operation

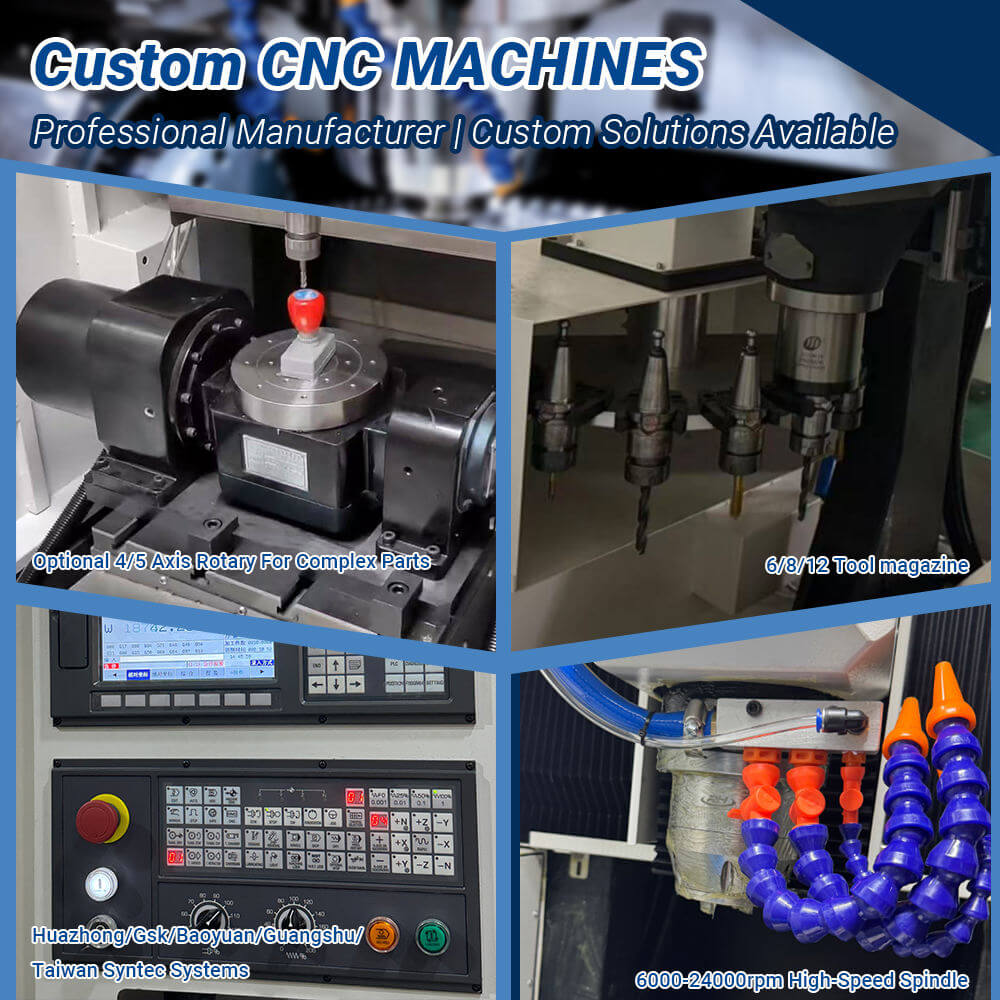

Users can pick from Huazhong, GSK and Syntec mainstream CNC controllers, all fully compatible with universal G-code programming, easy for global technicians to operate and program. Matched with automatic intermittent lubrication system and built-in working lamp, the transmission parts get timely oil maintenance to extend service life, and the work lamp guarantees clear vision for round-the-clock workshop machining.
Technical Specifications
| Parameter | T-650 | T-650B |
|---|---|---|
| Workbench size (W*L) mm | 600*500 | 600*500 |
| Max. load (kg) | 400 | 400 |
| Max. spindle speed (rpm) | 6000 | 8000 |
| Spindle power (kW) | 5.5 (optional 7.5) | 5.5 (optional 7.5) |
| Spindle taper hole | BT40 | BT40 |
| Distance from worktable to spindle end face (mm) | Min: 150 / Max: 450 | Min: 150 / Max: 450 |
| X axis rapid traverse speed (m/min) | 30 | 30 |
| Y axis rapid traverse speed (m/min) | 30 | 30 |
| Z axis rapid traverse speed (m/min) | 25 | 25 |
| X axis travel (mm) | 500 | 500 |
| Y axis travel (mm) | 600 | 600 |
| Z axis travel (mm) | 300 (table 150 from spindle face) | 300 (table 150 from spindle face) |
| Cutting feed speed (mm/min) | 10000 | 10000 |
| Tool magazine capacity (pcs) | 10 | 10 |
| Tool taper type | BT40 | BT40 |
| Max. drilling diameter (mm) | Φ40 | Φ40 |
| Max. tapping diameter (mm) | M20 | M20 |
| Max. milling diameter (mm) | Φ63 | Φ63 |
| Repeatability (mm) | 0.01 | 0.01 |
| Air pressure (kgf/cm²) | 5 | 5 |
| Machine size L*W*H (mm) | 1750*1800*2450 | 1750*1800*2450 |
| Machine weight (kg) | 2900 | 2900 |
FAQ
1. What makes the T-650 CNC tapping center different from a standard CNC milling machine?
The T-650 is optimized for high-speed drilling and tapping operations. Compared with general CNC milling machines, it focuses on improving hole machining efficiency, reducing cycle time, and providing stable thread processing performance for mass production of precision components.

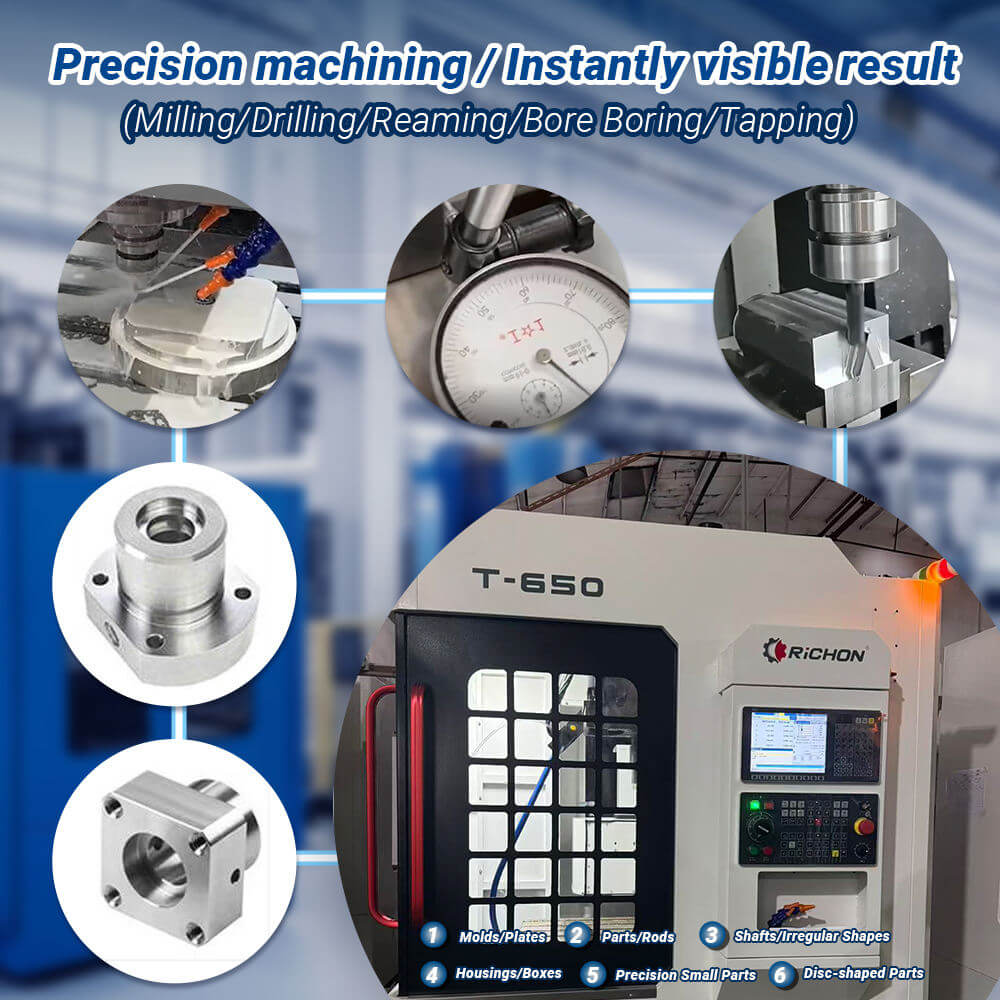

2. What types of parts are suitable for the T-650 CNC tapping center?
The T-650 is ideal for machining aluminum parts, automotive components, electronic housings, hardware products, and small precision components that require multiple drilling and tapping operations. Its compact structure and high machining efficiency make it suitable for manufacturers producing repeated small and medium-sized parts.
3. Can the T-650 improve production efficiency for parts with many holes?
Yes. The T-650 is designed for high-volume hole machining processes, including drilling, tapping, and milling operations. Fast tool movement and automatic tool changing help reduce non-cutting time and improve overall production efficiency.
4. How does the T-650 ensure stable tapping quality?
The T-650 uses rigid machine construction and precise CNC control to maintain accurate spindle movement and feed synchronization during tapping. This helps reduce problems such as broken taps, inaccurate threads, and inconsistent machining quality.
5. Who should choose the T-650 CNC tapping center?
The T-650 is suitable for factories producing automotive parts, electronic components, hardware accessories, and other precision products requiring fast drilling and tapping operations. It is an ideal choice for manufacturers looking to replace manual drilling machines and improve production consistency.
