High-Speed All-in-One Machining for Batch Small Hardware Production
This CNC machine delivers high-speed, precise, safe and stable running performance, perfectly tailored for mass production of small precision hardware workpieces. It can complete cutting, drilling and tapping procedures simultaneously in one clamping setup, drastically shortening processing cycles and greatly boosting workshop overall production efficiency for aluminum fittings, electronic spare parts and miniature mold components.

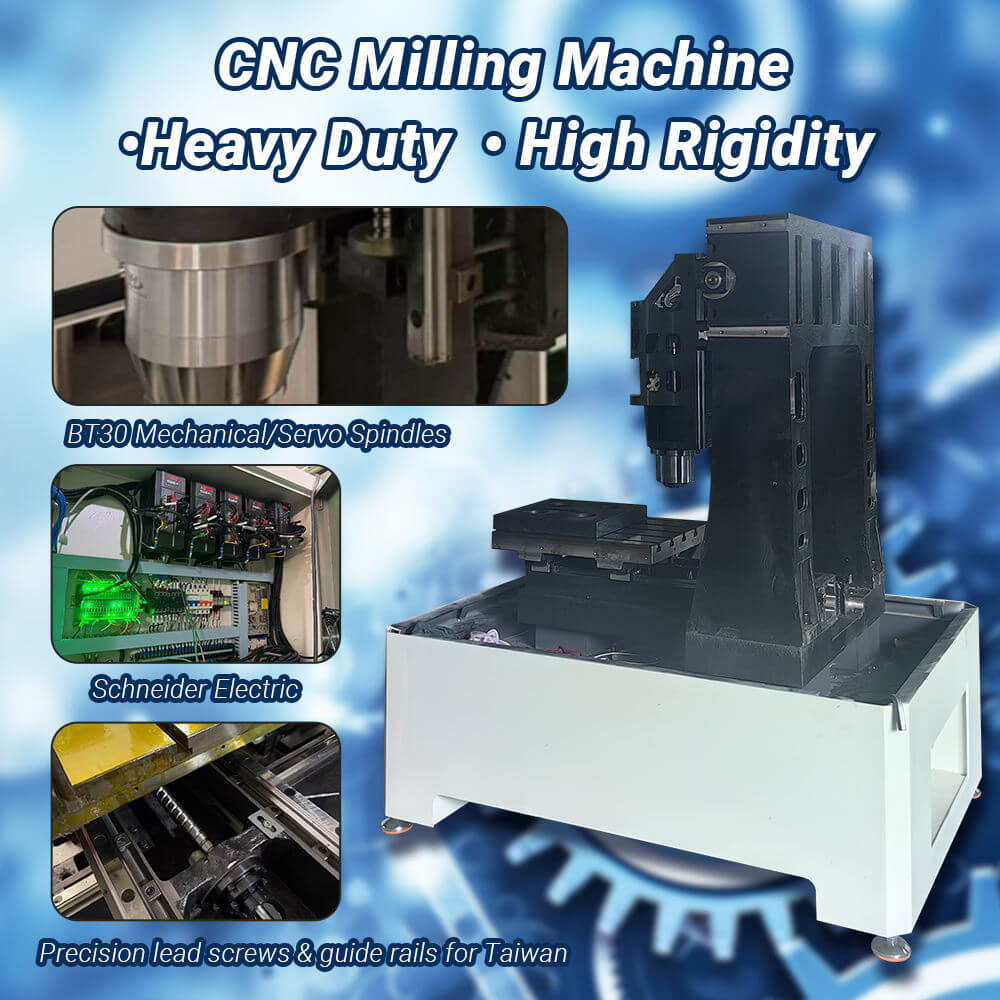

Patented Anti-Deformation Base Eliminates Vibration & Boosts Machining Precision
Adopting exclusive patented anti-deformation machine base structure, the equipment effectively suppresses cutting vibration generated during high-speed operation. It prevents frame deformation under long-term continuous load, steadily upgrades machining dimensional accuracy and workpiece surface finish quality, maintaining consistent precision even after years of heavy batch processing.

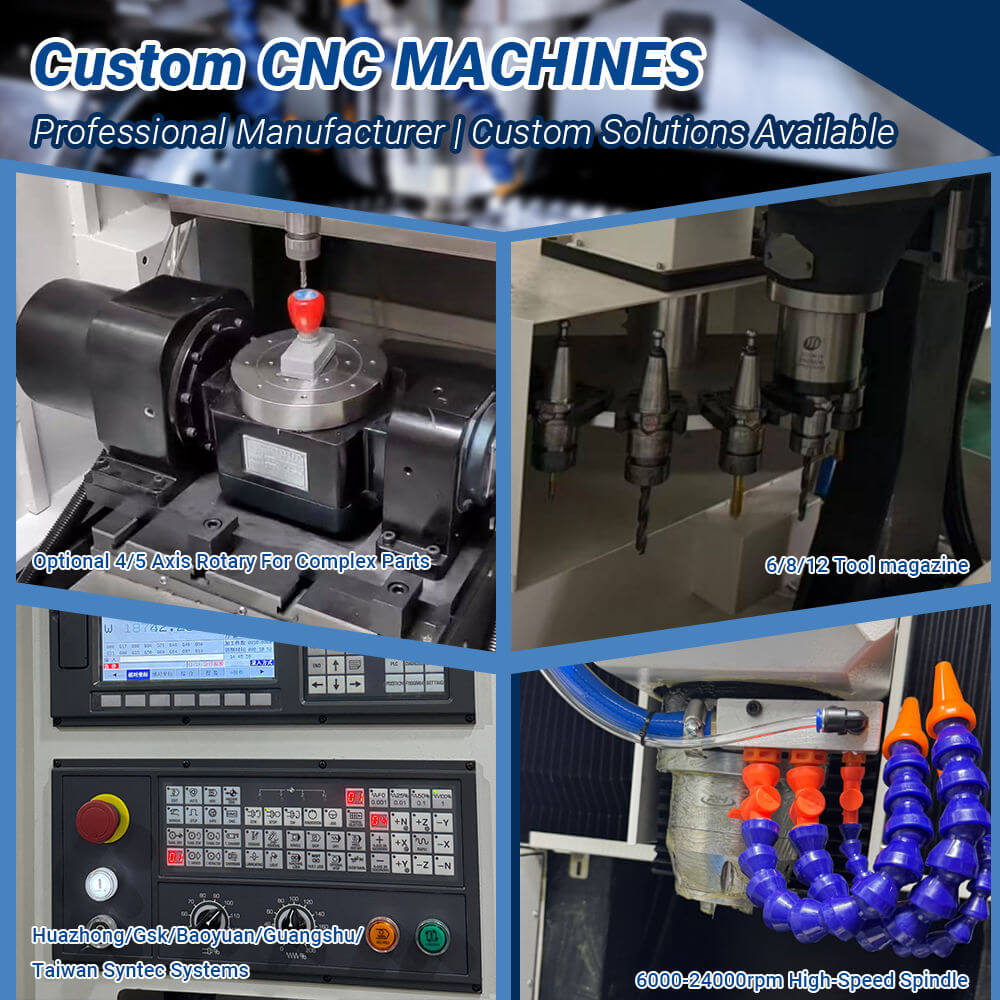

Multiple Optional CNC Controllers with Standard G-Code Compatibility
Three mainstream industrial control systems are available for selection: Huazhong, GSK and Syntec systems. All controllers support universal standard G-code programming, which is widely recognized by CNC operators worldwide. Flexible system selection meets diverse programming habits and production management demands, lowering staff learning costs and program conversion difficulties.
Powerful Spindle & Complete Auxiliary Systems for Durable Continuous Work
Fitted with a 4.5KW inverter spindle reaching maximum 24000rpm rotational speed, it provides powerful cutting power for fine finishing. Matched with automatic intermittent lubrication system and built-in working lamp, all moving parts get timely oil supply to reduce wear; the work light guarantees clear sight during nighttime or dim workshop machining, supporting non-stop long-hour batch manufacturing stably.
Technical Specifications
| Workbench size (W*L) mm | 500*400 |
| Max. load (kg) | 200 |
| Max. spindle speed (rpm) | 24000 |
| Spindle power (kW) | 4.5 |
| Spindle taper hole | BT30 |
| Distance from worktable to spindle end face (mm) | Min: 150 / Max: 350 |
| X axis rapid traverse speed (m/min) | 30 |
| Y axis rapid traverse speed (m/min) | 30 |
| Z axis rapid traverse speed (m/min) | 25 |
| X axis travel (mm) | 400 |
| Y axis travel (mm) | 500 |
| Z axis travel (mm) | 200 (table 150 from spindle face) |
| Cutting feed speed (mm/min) | 10000 |
| Tool magazine capacity (pcs) | 8 |
| Tool taper type | BT30 |
| Max. drilling diameter – variable-frequency spindle (mm) | – |
| Max. drilling diameter – Servo spindle (mm) | – |
| Max. tapping diameter – variable-frequency spindle (mm) | Tapping is not supported |
| Max. tapping diameter – Servo spindle (mm) | Aluminium M6 |
| Max. milling diameter (mm) | Φ50 |
| Repeatability (mm) | 0.01 |
| Air pressure (kgf/cm²) | 5 |
| Machine size L*W*H (mm) | 1350*1350*2050 |
| Machine weight (kg) | 1900 |
FAQ

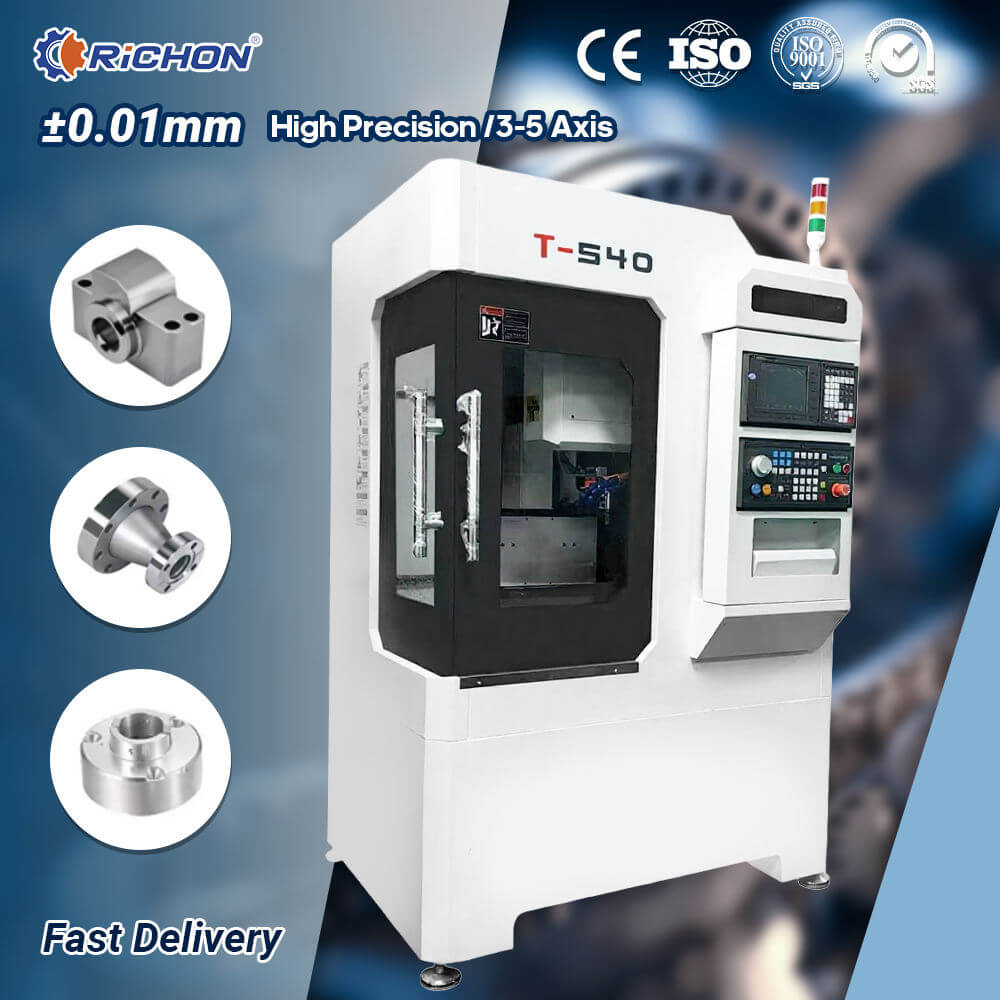

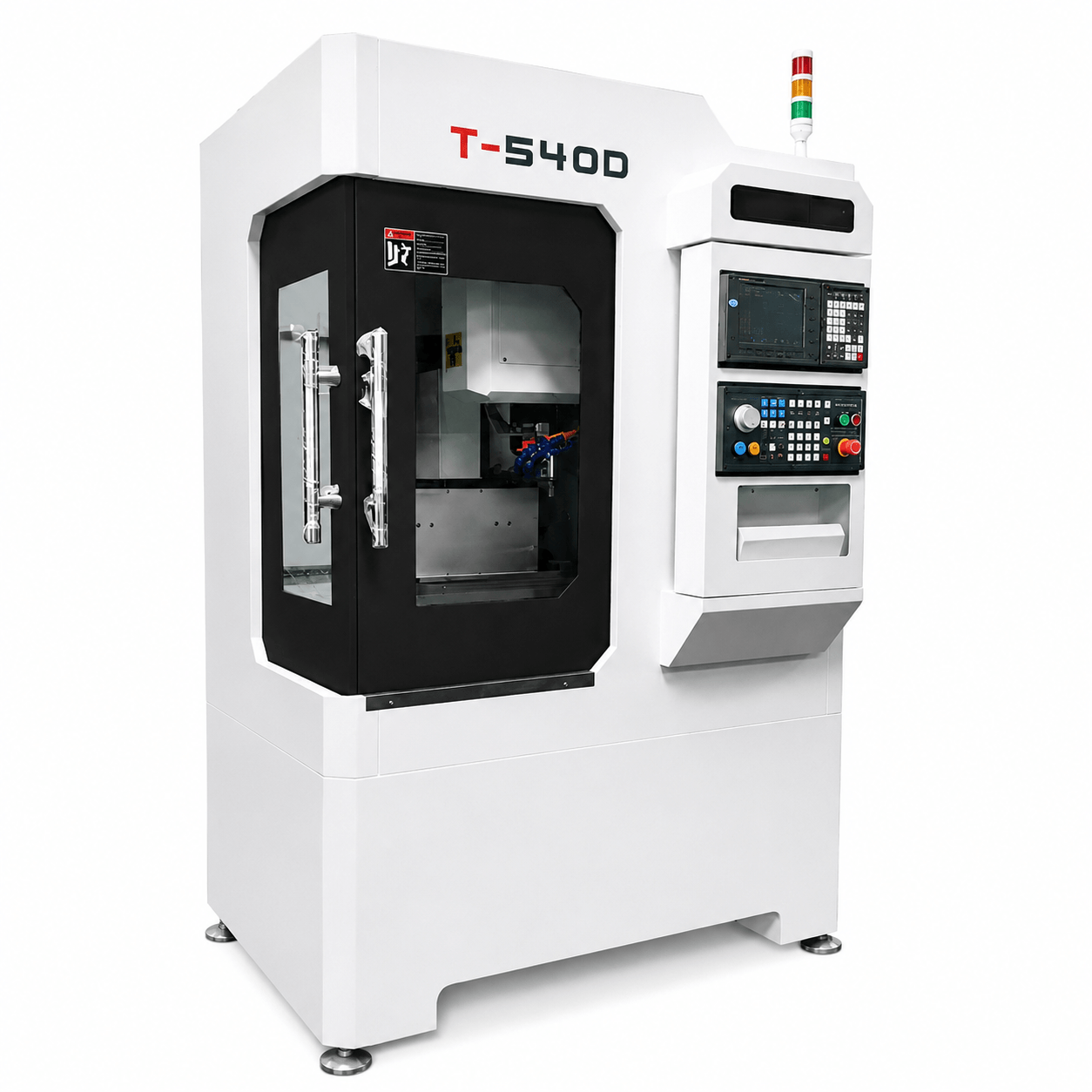

1. What makes the T-540D different from a conventional CNC milling machine?
The T-540D is a complete 3-axis vertical machining center designed for integrated milling, drilling, and tapping operations. Compared with traditional milling machines, it provides CNC automation, repeatable accuracy, and higher production efficiency for precision metal component manufacturing.

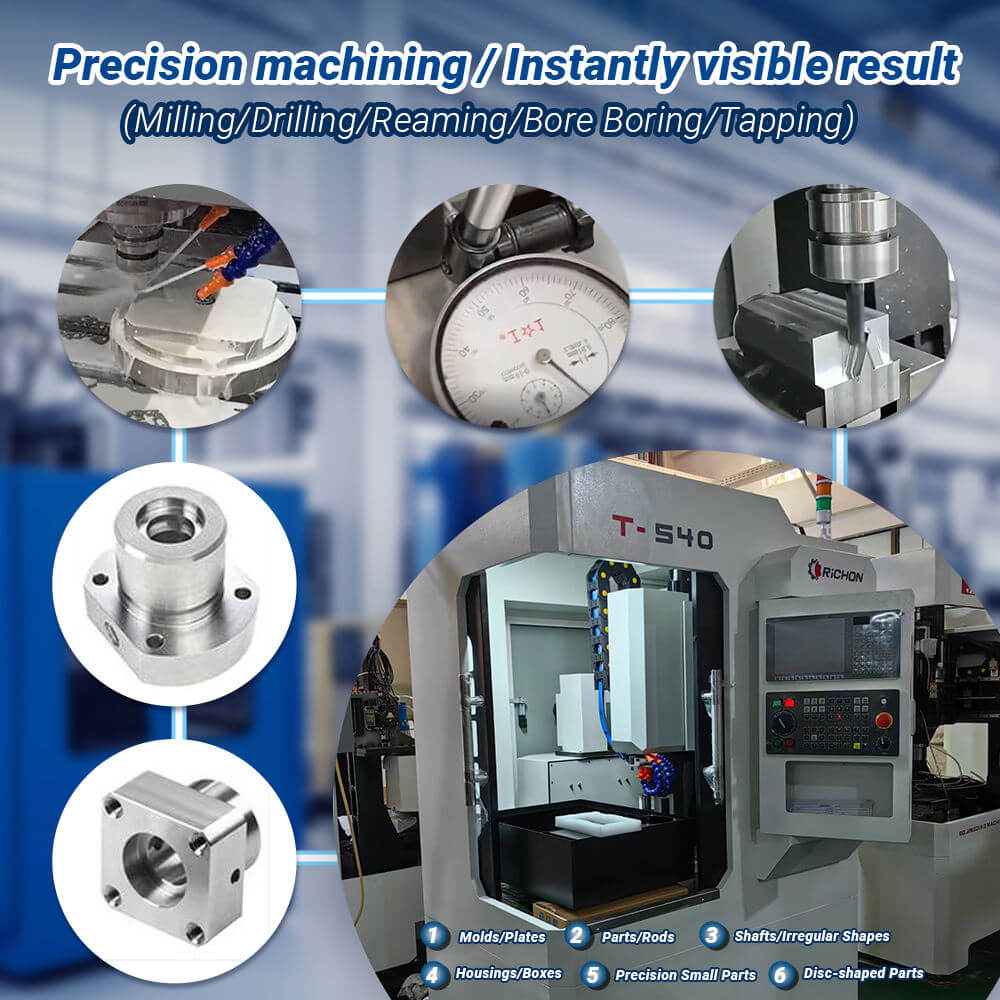

2. What types of parts can be machined with the T-540D CNC machine?
The T-540D is suitable for manufacturing automotive parts, hardware components, mechanical parts, molds, fixtures, and customized metal components. Its 3-axis machining capability allows manufacturers to complete multiple processes in one setup.
3. Is the T-540D suitable for small and medium-sized workshops?
Yes. The T-540D combines industrial machining capability with a compact footprint, making it suitable for workshops that need reliable CNC production but have limited factory space. It is an ideal upgrade from manual milling equipment.
4. Can the T-540D improve machining accuracy and production consistency?
Yes. CNC control technology allows precise movement control on X, Y, and Z axes, reducing manual operation errors and improving repeatability during batch production. This helps manufacturers maintain consistent quality for every workpiece.
5. Who should choose the T-540D vertical machining center?
The T-540D is suitable for automotive suppliers, precision machining workshops, hardware manufacturers, mold makers, and companies that require a flexible CNC machine for general metal processing and small-to-medium batch production.
6. If the machine breaks down, how do you provide after-sales support?Do you provide operation videos?
Yes. We provide comprehensive after-sales support, including remote technical assistance, online troubleshooting, operation manuals, demonstration videos, maintenance tutorials, and live video guidance. If replacement parts are required, genuine spare parts can be supplied quickly to minimize downtime and keep your machine running efficiently.
7. Can you issue Certificates of Origin (CO), Form A, Form E, or other export documents?
Yes. We can provide the necessary export documents—including Certificates of Origin (CO) and other preferential certificates such as Form E—in accordance with the trade agreements and customs requirements of the destination country. We can also assist you in preparing commercial invoices, packing lists, bills of lading, and other export documentation.
8. What is your minimum order quantity (MOQ)?Do you support OEM & ODM customization?
Our standard MOQ is 1 machine for most models. We also provide OEM and ODM services for distributors and equipment brands, including custom logos, machine colors, nameplates, voltage, packaging, and other specifications to meet your market requirements.
9. Which shipping ports do you use? Can you deliver to my designated warehouse?
We typically ship from major Chinese ports, including Shenzhen, Guangzhou, Ningbo, and Shanghai. We can also arrange delivery to your designated warehouse, freight forwarder, or project site through flexible international shipping solutions.
10. How long does delivery take to my country?
Production typically takes 7–35 days, depending on the machine model and order quantity. Shipping time varies by destination and transportation method. Once your order is confirmed, we will provide a detailed production schedule and estimated delivery time.
