High-Speed & High-Precision Machining

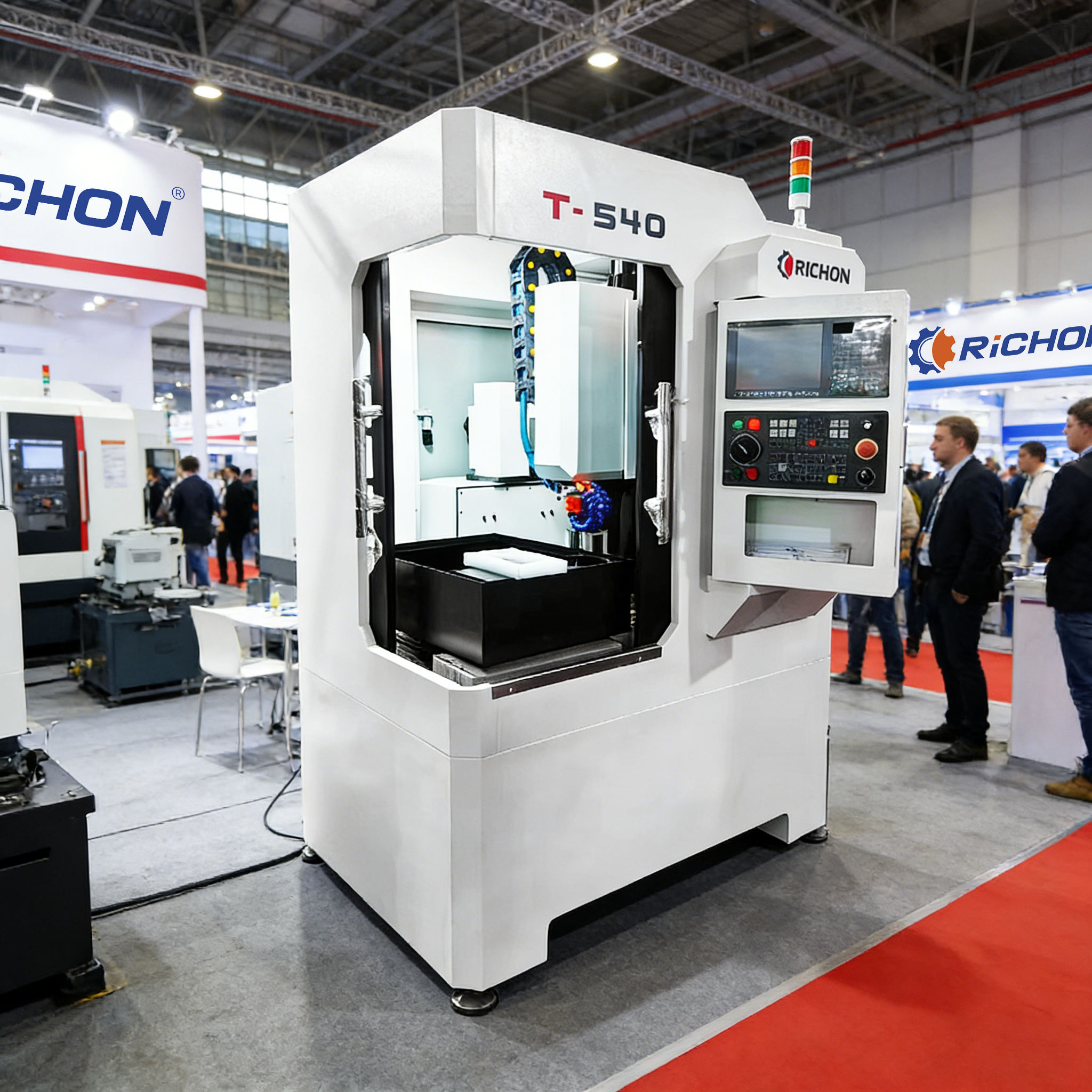

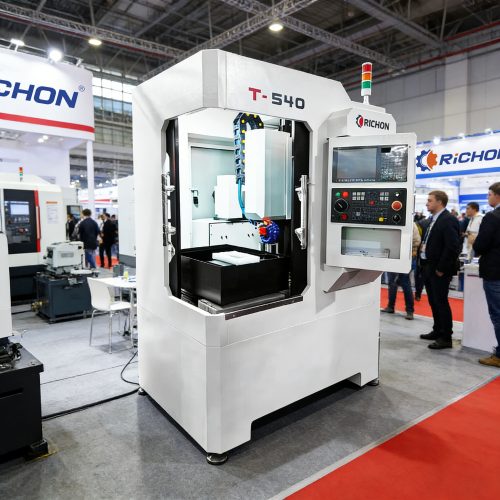

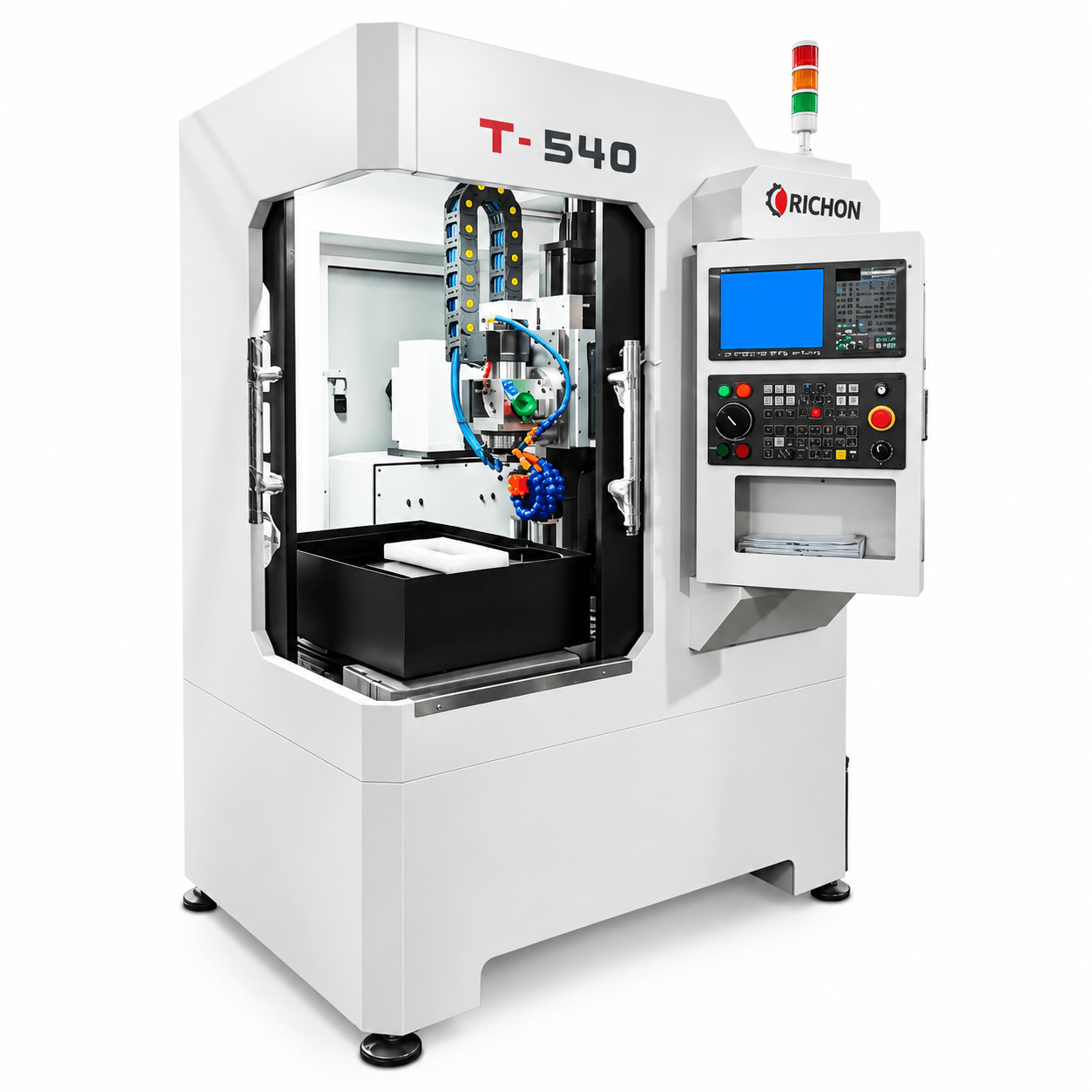

Built for high-speed and high-precision machining, this CNC vertical machining center delivers excellent rigidity, stable cutting performance, and outstanding accuracy. It is ideal for batch production of small metal components, precision hardware parts, molds, and mechanical components while maintaining consistent machining quality.
Multi-Process Machining Efficiency

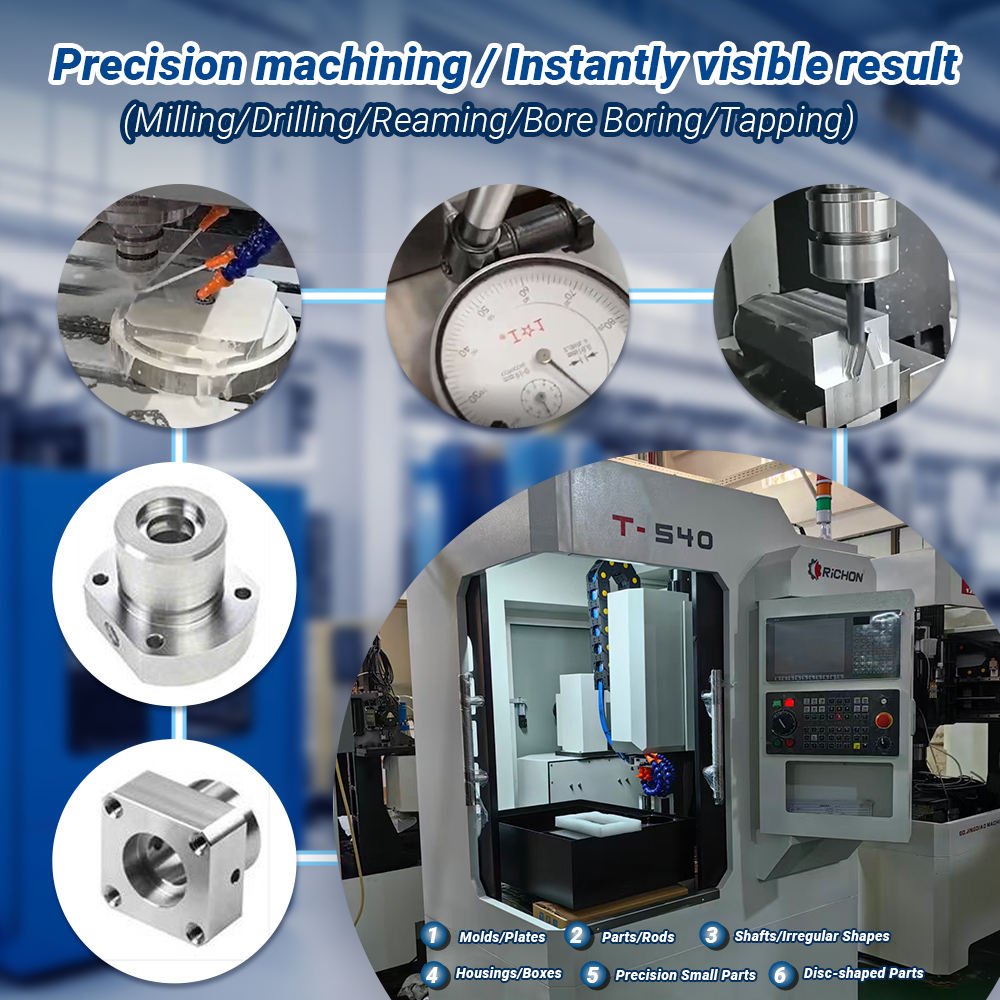

Supports milling, drilling, tapping, and boring in a single setup, reducing production time and improving machining efficiency. The compact VMC machine is suitable for aluminum, steel, stainless steel, copper, and other metal materials, making it an excellent choice for precision manufacturing.
Premium Components for Reliable Performance

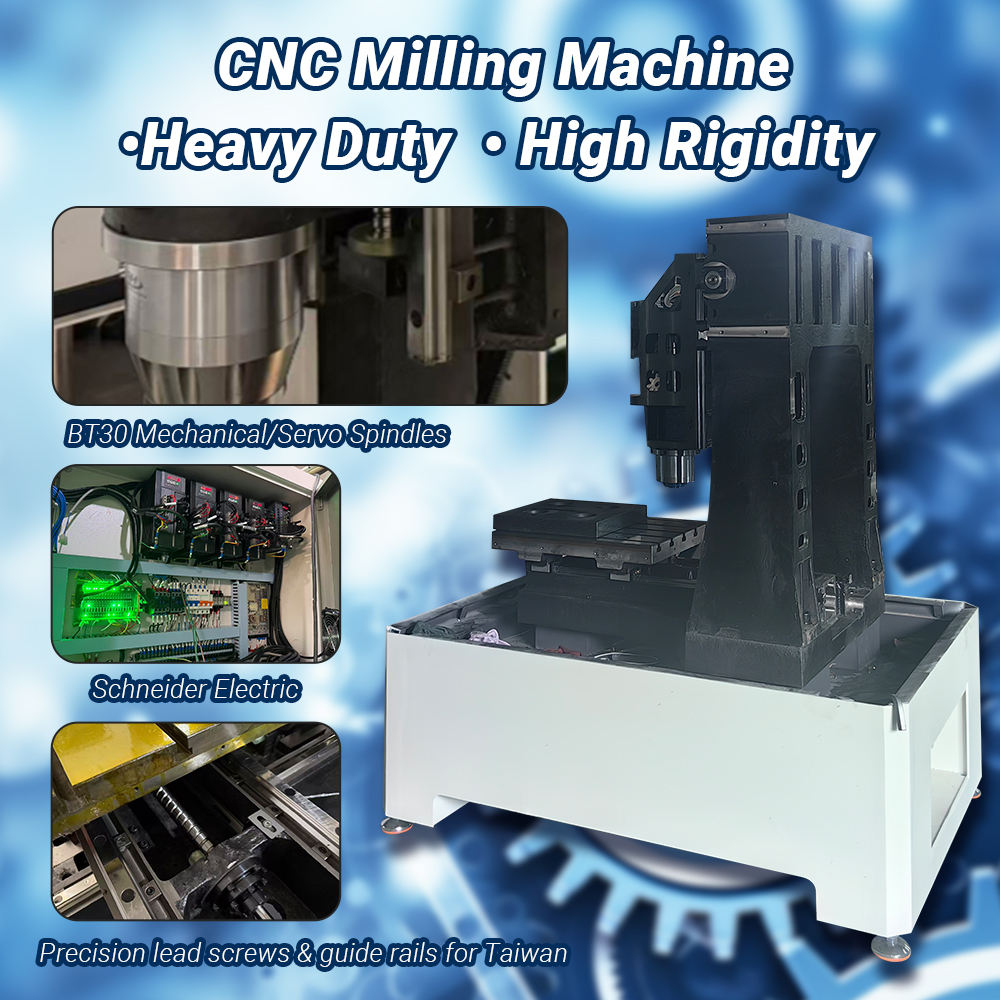

Equipped with a GSK CNC control system, high-performance servo motors, a Lichuan spindle, Taiwan precision C3 linear guideways, and P-grade ball screws, ensuring smooth motion, accurate positioning, and long-term machining reliability for industrial applications.
Stable Operation & Easy Maintenance
Designed for continuous industrial production with an automatic intermittent lubrication system and integrated work light for improved maintenance and operator convenience. The rigid machine structure provides excellent stability, ensuring reliable performance during long-hour machining operations.
Technical Specifications
| Parameter | T-540 | T-540B |
|---|---|---|
| Workbench size (W*L) mm | 500*400 | 500*400 |
| Max. load (kg) | 200 | 200 |
| Max. spindle speed (rpm) | 6000 | 9000 |
| Spindle power (kW) | 3 | 3 |
| Spindle taper hole | BT30 | BT30 |
| Distance from worktable to spindle end face (mm) | Min: 150 / Max: 350 | Min: 150 / Max: 350 |
| X axis rapid traverse speed (m/min) | 30 | 30 |
| Y axis rapid traverse speed (m/min) | 30 | 30 |
| Z axis rapid traverse speed (m/min) | 25 | 25 |
| X axis travel (mm) | 400 | 400 |
| Y axis travel (mm) | 500 | 500 |
| Z axis travel (mm) | 200 (table 150 from spindle face) | 200 (table 150 from spindle face) |
| Cutting feed speed (mm/min) | 10000 | 10000 |
| Tool magazine capacity (pcs) | 8 | 8 |
| Tool taper type | BT30 | BT30 |
| Max. drilling diameter (mm) | Aluminium Φ15 / Steel Φ10 | Aluminium Φ15 / Steel Φ10 |
| Max. tapping diameter (mm) | Steel M10 | Steel M8 |
| Max. milling diameter (mm) | Φ63 | Φ63 |
| Repeatability (mm) | 0.01 | 0.01 |
| Air pressure (kgf/cm²) | 5 | 5 |
| Machine size L*W*H (mm) | 1350*1350*2050 | 1350*1350*2050 |
| Machine weight (kg) | 1900 | 1900 |
FAQ
1. What makes the T-540 CNC machining center suitable for small and medium manufacturers?
The T-540 provides industrial CNC machining capability in a compact machine design. It is suitable for workshops that need reliable milling, drilling, and tapping performance while saving floor space. Its flexible machining capability makes it ideal for small and medium production environments.
2. What types of parts can be manufactured with the T-540 CNC machining center?
The T-540 is suitable for machining automotive components, metal parts, precision hardware, molds, fixtures, and customized mechanical components. It can perform multiple machining operations including milling, drilling, and tapping in one setup.
3. Is the T-540 suitable for batch production?
Yes. The T-540 is designed for stable repeated machining operations. CNC programming allows manufacturers to reproduce the same machining process accurately, reducing manual operation errors and improving production consistency for small and medium batch manufacturing.
4. How does the T-540 improve machining efficiency compared with conventional milling machines?
The T-540 integrates CNC control, automatic tool changing, and multi-process machining capability. Operators can complete several machining steps in one setup, reducing repositioning time and improving overall production efficiency.
5. Who should choose the T-540 CNC machining center?
The T-540 is ideal for manufacturers looking for a versatile CNC machine with a balance of accuracy, efficiency, and investment cost. It is suitable for automotive parts suppliers, precision workshops, hardware manufacturers, and companies upgrading from manual machining.
